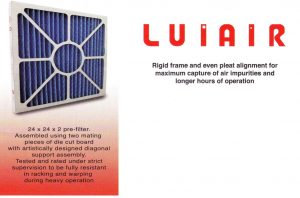

LUI AIR
• Rigid Frame
• Even pleat alignment
• Maximized capture of air impurities
• Longer Hours of Operation
STRICT QUALITY CONTROL
• Captures More Dirt
• Produces even pleat shape, count, height and spacing for optimum performance
• Reliable Filter
• Die cut frame fully applied
• Quality adhesive that ensures strong bonds
• Media pack tips are carefully bonded to support assembly
• Prevents pleat misalignment during operation
• Affordable Cost
• Locally made, Meeting global standards
• Pioneers in the locally produced filter market
• Low cost but global quality
• Flexible Sizes
• Increased flexibility in filter sizes production
PRODUCT INFORMATION
*ALL FILTER MEDIA HAVE UNDERGONE ASHRAE 52.2 STANDARD COMPLIANCE TESTING.
| NOMINAL SIZE | ACTUAL SIZE | AIR FLOW CAPACITY @500-600 FPM | INITIAL RESISTANCE 2″ 4″ @500-600 FPM | GROSS MEDIA AREA (SQ FT.) |
| 12 x 24 x 2 | 11-3/8 x 23-3/8 x 1-3/4 | 1250 | 0.30 | 8.6 |
| 20 x 20 x 2 | 19-1/2 x 19-1/2 x 1-3/4 | 1750 | 0.30 | 11.9 |
| 24 x 24 x 2 | 23-3/8 x 23-3/8 x 1-3/4 | 2500 | 0.30 | 17.6 |
| 24 x 24 x 4 | 23-3/8 x 23-3/8 x 1-3/4 | 2500 | 0.25 | 26.1 |
Note: Other sized available upon order*
